As modern power distribution networks become more complex, flexible and reliable cable distribution equipment is becoming increasingly important. For industrial facilities, commercial buildings, infrastructure projects and utility networks, electrical engineers need practical solutions for connecting and distributing low voltage power cables.

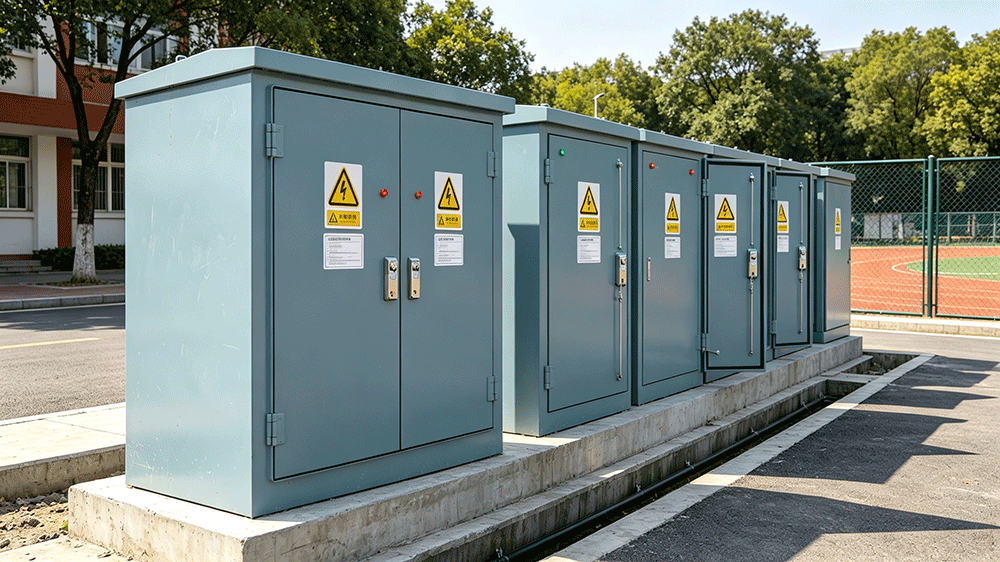

The DFW low voltage cable branch box is designed for this purpose. It provides a convenient point for cable branching, connection and distribution while helping simplify the structure of low voltage power distribution systems.
But what exactly is a DFW cable branch box, and why is it widely used in modern electrical distribution systems?
A DFW low voltage cable branch box is an electrical distribution device used to connect and branch low voltage power cables.
Instead of routing individual cables directly from the main distribution equipment to every downstream load, a cable branch box can provide an intermediate distribution point.
This makes it easier to organize multiple cable connections and create a more flexible power distribution network.
Depending on the project requirements, the box can be configured with different cable connection arrangements, protection components and enclosure specifications.
The basic function of a cable branch box is to receive power from an upstream cable and distribute it to multiple downstream circuits.
A typical system may include:
Main power supply → DFW cable branch box → Multiple downstream cables → Electrical loads
This configuration can simplify cable routing and make the distribution network easier to manage.
For projects involving multiple buildings, production areas, equipment groups or distribution points, a properly designed cable branch box can help improve the overall organization of the electrical system.
One of the main advantages of a cable branch box is its ability to provide multiple cable connection points.
This makes it suitable for power distribution systems where one incoming power source needs to supply several downstream circuits.
The configuration can be customized according to the number and specifications of incoming and outgoing cables.
Large electrical projects may involve extensive cable networks.
Without appropriate intermediate distribution points, cable routing can become complicated and difficult to maintain.
A low voltage cable branch box can help organize cable connections and create a clearer distribution structure.
This can be particularly useful in industrial plants, commercial developments and infrastructure projects.
A properly designed cable distribution box provides an accessible location for cable connections.
During maintenance or system expansion, technicians can inspect and manage cable connections more efficiently.
For long-term electrical infrastructure, easier maintenance can help reduce unnecessary downtime and simplify future modifications.
Space is an important consideration in many electrical projects.
DFW cable branch boxes provide a compact solution for cable branching without requiring a large distribution cabinet for every connection point.
Depending on the installation environment, the equipment can be configured for different project requirements.
DFW low voltage cable branch boxes can be used in a variety of power distribution applications.
Factories and manufacturing plants often have multiple production areas and electrical loads.
A cable branch box can provide intermediate power distribution points between the main electrical distribution system and downstream equipment.
Commercial buildings may require electrical power to be distributed across different floors, zones or functional areas.
Cable distribution boxes can help create a structured and flexible distribution network.
Infrastructure facilities such as transportation systems, public facilities and utility projects may involve long-distance cable distribution.
Branch boxes can provide convenient connection points for different sections of the network.
Low voltage cable distribution equipment can also be used in urban and residential power distribution applications where multiple downstream circuits need to be connected to an upstream supply.
Selecting a suitable cable branch box requires consideration of both electrical and installation requirements.
The rated voltage of the cable branch box should match the requirements of the low voltage distribution system.
The rated current should be selected according to the expected electrical load and cable specifications.
The number of incoming and outgoing cables is an important factor when determining the appropriate box configuration.
Different projects use different cable types and cross-sectional areas.
The cable connection structure should therefore be compatible with the required cable specifications.
For outdoor or demanding installation environments, enclosure protection is particularly important.
The appropriate protection level should be selected according to factors such as moisture, dust and environmental exposure.
Engineers should determine whether the cable branch box will be installed indoors, outdoors, underground or in another specialized environment.
The installation conditions can influence enclosure design, cable entry arrangements and protection requirements.
A cable branch box and a conventional low voltage distribution cabinet serve different purposes.
A distribution cabinet generally integrates circuit breakers, busbars, meters, control components and other electrical devices.
A cable branch box focuses more specifically on cable connection and branching.
Therefore, a cable branch box can be a useful solution when a project requires a compact and dedicated cable distribution point rather than a complete low voltage distribution cabinet.
In larger projects, both types of equipment may be used together as part of an integrated power distribution system.
For B2B electrical projects, the product itself is only one part of the purchasing decision.
An experienced cable branch box manufacturer should be able to understand the project's electrical requirements and provide an appropriate configuration.
Important factors include:
Electrical design capability
Cable connection configuration
Enclosure manufacturing
Quality control
Customized solutions
Factory testing
Technical support
International project experience
For overseas buyers, clear technical communication is especially important because cable specifications, installation requirements and electrical standards may vary between markets.
As electrical distribution systems become more distributed and complex, flexible cable connection solutions are increasingly important.
The DFW low voltage cable branch box provides an efficient way to organize cable branching and create intermediate distribution points.
Whether used in industrial facilities, commercial buildings, infrastructure projects or utility networks, the right cable branch box can help improve distribution flexibility and simplify cable management.
The DFW low voltage cable branch box is an important component for modern low voltage cable distribution systems.
By providing a dedicated point for cable branching and connection, it can simplify cable routing, improve distribution flexibility and make maintenance more convenient.
For project owners, electrical contractors, EPC companies and power distribution system integrators, selecting the right DFW cable branch box requires careful consideration of voltage, current, cable size, connection configuration, enclosure protection and installation conditions.
As an experienced electrical equipment manufacturer, Changzhou Tuoxin Electric provides low voltage power distribution equipment and customized electrical solutions for industrial, commercial and infrastructure applications.
For DFW cable branch box requirements, contact our technical team to discuss your project specifications and distribution needs.
