Power distribution networks serve as the central nervous system for modern commercial, industrial, and utility operations. Equipment failure does not just cause a temporary power outage. It translates to severe operational downtime, massive revenue loss, and significant safety hazards for on-site personnel. Selecting reliable hardware is a top priority for maintaining continuous facility uptime and operational safety.
The global market contains thousands of original equipment manufacturers, assemblers, and integrators with vastly varying technical capabilities. Procurement and engineering teams face a specific challenge. You must distinguish between basic vendors who merely assemble third-party components in standard enclosures and true manufacturers. A capable manufacturer possesses deep internal engineering resources, comprehensive type-testing credentials, and strict quality assurance capabilities. A superficial vendor evaluation easily leads to long-term infrastructure vulnerabilities.
This guide provides a structured, engineering-grade evaluation framework. We will help you assess technical capabilities and mitigate hidden supply chain risks. You can confidently shortlist the ideal switchgear manufacturer for your specific electrical infrastructure needs by following these criteria.
Compliance is Non-Negotiable: A credible manufacturer must provide verifiable Type Test certificates (IEC, ANSI/IEEE, UL) for specific configurations, not just generic ISO certifications.
Portfolio Breadth Signals Expertise: Manufacturers offering integrated solutions across the voltage spectrum—from low voltage switchgear to medium voltage switchgear and prefabricated substations—demonstrate robust internal engineering.
Safety and Intelligence are the New Baseline: Top-tier manufacturers now integrate Internal Arc Classification (IAC) safety protocols and smart IoT condition monitoring as standard offerings.
TCO Trumps Initial CapEx: Evaluating the total cost of ownership requires factoring in maintenance accessibility (e.g., withdrawable switchgear panels), lifecycle support, and spare parts availability over a 20- to 30-year operational lifespan.
Supply Chain Transparency: Thoroughly auditing an electrical switchgear supplier China or other global hubs requires strict Factory Acceptance Testing (FAT) protocols and component-level traceability.
You must clearly define your project requirements before evaluating potential manufacturing partners. The application environment dictates the exact vendor profile you need. Manufacturers specialize in different durability tiers, voltage ranges, and technological integrations. Properly documenting your technical specifications ensures you only engage vendors capable of delivering reliable power distribution equipment.
Electrical equipment performs differently based on environmental deployment. Indoor commercial facilities, such as hyperscale data centers or hospitals, prioritize highly compact footprints and quiet operation. These clean environments generally require standard IP20, IP31, or IP42 ingress protection ratings. The engineering focus remains on uninterrupted power transfer, seamless building management integration, and heat dissipation.
Harsh environments demand heavily reinforced industrial switchgear. Mining operations, offshore marine vessels, and petrochemical refining plants expose electrical infrastructure to corrosive gases, extreme humidity, and constant mechanical vibrations. You must specify elevated NEMA 3R/4X ratings or IP54/IP65 sealed enclosures for these scenarios. Furthermore, specialized anti-corrosion surface treatments become mandatory. Look for manufacturers utilizing C4 or C5-M marine-grade paint categories. They must use multi-stage powder coating processes over Aluzinc or galvanized steel to protect enclosures against rapid degradation in salt-laden atmospheres.
Operational differences between varying voltage classes require distinct manufacturing competencies. Sourcing low voltage switchgear (rated under 1kV) involves managing extremely high continuous currents, often up to 4000A or 6300A. Engineering low-voltage panels requires massive busbar structures and extensive thermal dissipation planning. In contrast, developing medium voltage switchgear (ranging from 1kV to 36kV) focuses heavily on managing dielectric insulation levels, preventing corona discharge, and ensuring robust arc-fault containment.

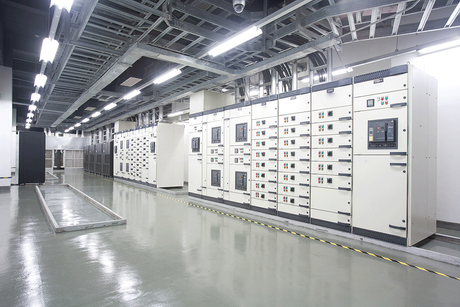

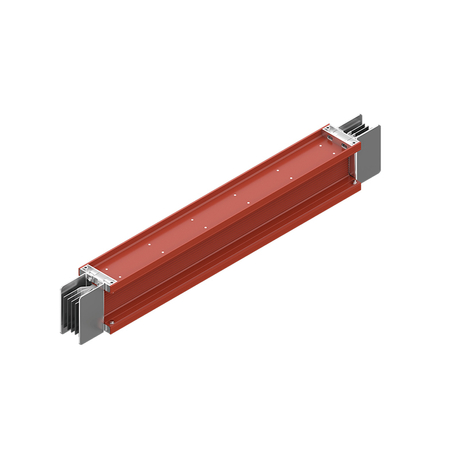

You must strictly evaluate the internal material quality the manufacturer utilizes. Busbar specifications serve as a primary indicator of overall build quality. Insist on C11000 high-grade electrolytic tough pitch (ETP) copper boasting 99.9% purity. Avoid cheaper aluminum alternatives unless strictly required by weight limits. Specify silver-plated or tin-plated joints to reduce contact resistance and prevent oxidation. Verify the sheet metal enclosure thickness. Standard commercial panels might use 1.5mm mild steel, but demanding applications require 2mm to 3mm cold-rolled steel for structural integrity during a fault. Because many manufacturers specialize strictly in only one voltage tier, identifying vendors capable of matching your specific load and fault current requirements is your first filtering step.
Modern electrical infrastructure increasingly relies on localized data processing. Specify your exact requirements for Building Management System (BMS) and SCADA compatibility early in the RFQ cycle. Premium manufacturers offer digital integration straight from the factory, rather than forcing your integrators to retrofit external sensors post-installation.
Determine if your project requires advanced digital communication protocols. IEC 61850 GOOSE messaging is standard for high-speed substation automation, while Modbus RTU, Modbus TCP/IP, or PROFINET often suffice for factory-level integration. Equipment capable of continuous thermal sensing, partial discharge monitoring, and breaker wear analytics empowers your maintenance teams. This data allows you to implement true predictive maintenance strategies, drastically reducing the statistical likelihood of unexpected mechanical failures.
The technical offerings and underlying design philosophies of a manufacturer separate high-end engineering firms from basic assemblers. You must audit their portfolio depth, engineering flexibility, and physical form factor expertise.
A vendor providing comprehensive, end-to-end solutions offers a massive project advantage. It dramatically reduces integration risks and simplifies long-term warranty claims. Look for manufacturers that supply standard KYN28 switchgear for primary medium voltage distribution, alongside compact units for secondary networks. For example, a robust ring main unit (RMU) is necessary for space-constrained urban distribution or wind farm collector networks.

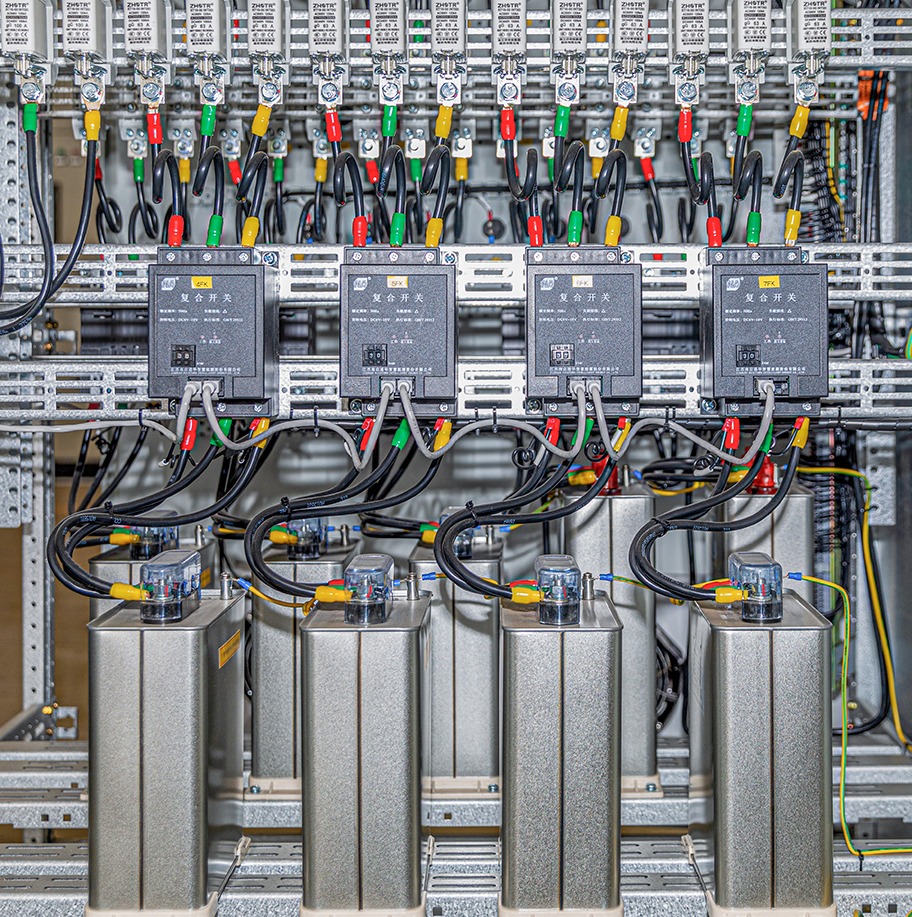

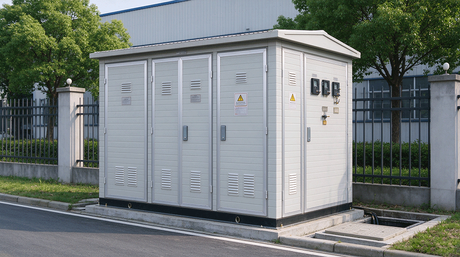

Assess their capability to deliver fully integrated macro-solutions. A manufacturer that designs and assembles a complete prefabricated substation demonstrates superior internal engineering coordination. They must understand exactly how power transformers, primary switchboards, and protective relaying systems interact within a single localized enclosure. You should also evaluate their focus on forward-looking sustainability. The industry is rapidly shifting toward eco-friendly alternatives. Ask vendors about their ability to provide SF6-free RMUs and dry-type solid-insulated equipment to meet upcoming environmental regulations.
Infrastructure projects rarely fit perfectly into standardized catalogs. Evaluate the manufacturer’s ability to execute custom mechanical and electrical engineering. Can they modify busbar arrangements to accommodate bottom-entry cables in a restrictive trench? Can they integrate custom relay logic tailored to your specific generator synchronization needs? Lower-tier vendors force a standard product fit. This forces your civil engineers to alter the physical building design to accommodate the equipment. A premium partner adapts the internal panel layouts to fit your strict spatial and footprint constraints seamlessly.
Maintenance speed directly impacts your facility's operational revenue. Compare traditional fixed-type designs against more advanced form factors. Utilizing a withdrawable switchgear panel architecture significantly improves lifecycle management and operator safety.
Feature | Fixed Switchgear Panels | Withdrawable Switchgear Panels |
|---|---|---|
Breaker Mounting | Permanently bolted to the main busbar assembly. | Mounted on a wheeled or sliding mechanical chassis. |
Maintenance Speed | Slow. Requires complete busbar de-energization and unbolting. | Fast. Breakers can be racked out and swapped in minutes. |
Operator Safety | Lower. Personnel interact directly with primary connections. | High. Mechanical shutters automatically isolate live busbars. |
Footprint & CapEx | Smaller physical footprint and lower initial capital cost. | Slightly larger footprint and higher initial capital cost. |
MTTR (Mean Time To Repair) | High (Hours to Days). | Low (Minutes). |
Withdrawable designs allow maintenance personnel to rack out a faulty circuit breaker and replace it with a spare instantly. This happens without de-energizing the entire main busbar, keeping adjacent processes running. A manufacturer's expertise in crafting precise, mechanically interlocked withdrawable cassettes reflects a deep commitment to operational longevity.
Electrical faults carry explosive, life-threatening energy. You must assess the manufacturer's capability to protect personnel and prevent equipment loss during a catastrophic short circuit. Look for vendors who implement active arc mitigation systems. Optical arc sensors paired with dedicated relays can detect an arc flash and trip the upstream breaker in less than two milliseconds.
Remote racking functionalities represent another essential safety feature. Motorized racking allows operators to connect or disconnect breakers via an umbilical cord or wireless tablet. This moves personnel safely outside the dangerous arc flash boundary during the highest-risk operations. These advanced safety implementations highlight the difference between a forward-thinking engineering partner and a basic sheet metal fabricator.
Rigorous international standards exist to validate the safety, reliability, and engineering competence of electrical hardware. You cannot afford to take a manufacturer's claims at face value. You must evaluate their compliance dimensions objectively through certified documentation.
Regulatory compliance forms the baseline of any technical evaluation. For medium voltage networks, equipment must adhere strictly to the IEC 62271 family of standards (specifically IEC 62271-200). Low voltage assemblies must comply with IEC 61439-1 and 61439-2. If you are operating in North America, ANSI/IEEE C37.20.2 standards are mandatory, alongside local compliance markers like UL or CSA.
Verify Loss of Service Continuity (LSC) categories. You want LSC2B classification for maximum uptime, meaning the cable compartment and busbar compartment remain energized while the breaker compartment is accessed. Detail the necessity of Internal Arc Classification (IAC) ratings. An IAC rating (such as AFLR 31.5kA/1s) ensures the structural integrity of the metal enclosure during an internal explosion. It guarantees that explosive gases and plasma safely vent upward or downward, away from the front, lateral, and rear areas where operators stand. Demand independent, third-party Type Test reports from recognized laboratories like ASTA, KEMA, or CESI. Relying purely on self-certified documents introduces unacceptable liability.
Examine exactly how a switchgear panel manufacturer sources internal components. The reliability of the completed panel is dictated by the quality of the circuit breakers, protection relays, current transformers, and contactors mounted inside it.
Discuss the component strategy openly. Some manufacturers utilize tier-1 global components from brands like ABB, Siemens, or Schneider Electric, housing them within highly customized enclosures. This approach guarantees global spare parts availability and proven breaker reliability. Alternatively, some vendors use proprietary, vertically integrated components. While this lowers upfront costs, it locks you into a single-source supplier for spare parts over the next thirty years. Weigh these lifecycle trade-offs carefully based on your in-house maintenance capabilities.
The Factory Acceptance Test (FAT) serves as your final safeguard before the equipment ships to the site. Define the exact steps of a rigorous FAT process with your chosen vendor. They must demonstrate comprehensive electrical and mechanical testing capabilities.
Testing Phase | Primary Objective | Key Parameters Verified |
|---|---|---|
Visual & Mechanical Inspection | Verify build quality and safety interlocks. | Paint thickness, IP rating seals, mechanical shutter operation, and torque verification on all busbar joints. |
Dielectric Resistance Tests | Ensure insulation integrity under high stress. | Power-frequency withstand voltage and lightning impulse tests to prevent phase-to-ground faults. |
Temperature Rise Simulations | Validate thermal management under full load. | Continuous current injection to ensure busbars and enclosures do not exceed specified thermal limits. |
Relay Injection Testing | Confirm intelligent protection logic. | Secondary injection to test SCADA communication, trip times, and specific protection curves (e.g., ANSI 50/51, ANSI 87). |
To ensure a flawless FAT experience, demand that the manufacturer follows a strict sequential protocol during your visit:
Documentation Audit: Review all as-built drawings, wiring schematics, and component manuals against the original specification.
Mechanical Cycling: Rack the breakers in and out manually 50 times to verify alignment and shutter interlock functionality.
Primary Injection: Inject high current through the primary busbars to verify current transformer (CT) ratios and polarity.
Secondary Injection: Test the microprocessor relays to ensure they trip the breaker accurately according to the programmed time-current curves.
Dielectric Withstand: Apply high voltage across the open contacts and phase-to-ground to measure leakage current and insulation resistance.
Procurement teams often focus exclusively on the initial purchase order. However, industrial electrical equipment operates continuously for 20 to 30 years. You must move beyond upfront pricing to calculate the long-term financial impact of your hardware selection.
A lower initial capital expenditure (CapEx) frequently results in drastically higher operational expenditure (OpEx). If cheap equipment suffers from high failure rates, inefficient thermal management, or difficult maintenance access, your facility bleeds money through unplanned downtime and expensive emergency repair calls.
Investing upfront in smart, digitally integrated equipment reliably lowers long-term OpEx. Continuous thermal sensing alerts your team to a deteriorating busbar joint weeks before it causes a catastrophic arc flash. This transforms your maintenance department's strategy from reactive, high-stress repairs to planned, low-cost predictive maintenance. The return on investment (ROI) for thermal monitoring pays for itself the very first time it prevents an unplanned shutdown.
Navigating global supply chains requires analytical thinking. Partnering with a reputable electrical switchgear supplier China offers substantial cost advantages and access to massive, scaled production capacity. However, you must apply rigorous evaluation criteria to overseas suppliers to mitigate risk.
Check their international export experience thoroughly. Verify their ability to provide comprehensive, English-language technical documentation, including CAD wiring diagrams and detailed operation manuals. Ensure they maintain strict ISO 9001 quality management and ISO 14001 environmental compliance. Analyze the shipping logistics costs, import duties, containerization methods, and the availability of localized support networks in your region. Ensure the lower initial unit cost is not completely offset by massive logistical delays or installation overhead.
Factor in the unavoidable costs of lifecycle maintenance. Review the long-term OEM service contracts offered by the vendor. Check the regional market availability of non-proprietary replacement parts for the specific breakers and relays they install. Evaluate the manufacturer's historical commitment to supporting legacy equipment. A vendor who frequently discontinues product lines without offering backward-compatible retrofit kits forces you into expensive, premature panel replacements.
Even with excellent specifications, hardware procurement carries heavy execution risks. Take practical steps to protect your project timeline, ensure successful site integration, and filter out unreliable vendors during the bidding phase.
Project delays are incredibly costly to overall facility commissioning. Discuss manufacturing lead times transparently during the evaluation phase. Evaluate a manufacturer’s actual shop-floor production capacity. Assess their supply chain resilience regarding raw materials. Can they reliably source high-grade copper, specialized electrical steel, and epoxy resins to meet your project deadlines? Vendors who rely heavily on just-in-time inventory for volatile commodities introduce unacceptable schedule risks during global material shortages.
The vendor's responsibility does not end at the factory loading dock. Review their standard warranty terms and negotiate extended warranty coverage for critical infrastructure components. Evaluate the vendor's capability for Site-Acceptance Testing (SAT) and cold commissioning.
SAT ensures the equipment survived cross-country or overseas transport without mechanical misalignment. It also confirms the equipment interfaces correctly with site-specific conditions. Assess their ability to provide on-site installation supervision, specifically regarding digital relay programming and SCADA network handshakes. Rapid-response field engineering is mandatory. If a commissioning issue arises during startup, you need assurance that the vendor can deploy technical experts to your site immediately.
During the RFQ and auditing phases, stay alert for specific warning signs that indicate a problematic vendor. Eliminate vendors who display any of the following red flags:
Opaque Documentation: Reluctance or outright refusal to share full, unredacted third-party type test reports.
Lack of Engineering Depth: The absence of a dedicated in-house engineering team, indicating they only bolt together pre-engineered kits.
Hidden Supply Chains: Opaque component sourcing where the origin of critical breakers, CTs, or relays is actively hidden from the buyer.
Audit Evasion: Inability or unwillingness to host a comprehensive facility audit, whether physical or virtual via live video walkthroughs.
Safety Evasion: Vague answers regarding specific arc flash containment specifications, blast venting, and IAC compliance parameters.
Consolidate site data: Gather all single-line diagrams, required voltage classes, and exact environmental constraints before contacting vendors.
Draft a strict RFQ: Demand comprehensive type test certificates, detailed component Bills of Materials (BOMs), and proof of digital integration capabilities upfront.
Schedule a vendor audit: Book a virtual or physical facility tour to verify the manufacturer's internal engineering capabilities and production floor quality control.
Finalize the FAT protocol: Define the exact mechanical and electrical testing steps required before you authorize equipment shipment.
A: The industry standard lead time ranges between 12 to 24 weeks. This timeframe factors in initial custom engineering design, client drawing approvals, raw material procurement, component lead times, assembly, and rigorous Factory Acceptance Testing (FAT). Highly complex or heavily customized substations may extend closer to 30 weeks.
A: Demand international, third-party test reports from recognized labs like KEMA or ASTA, rather than domestic-only certificates. Verify their ISO 9001 and ISO 14001 compliance. Furthermore, audit their export history and request direct references for international projects to confirm their ability to meet global standards and provide English-language technical support.
A: A fixed panel permanently bolts the circuit breaker to the main busbars, requiring complete system de-energization for maintenance. A withdrawable panel mounts the breaker on a movable chassis. This allows operators to safely rack out and remove the breaker for maintenance or rapid replacement without shutting down the entire switchboard, significantly lowering the Mean Time To Repair (MTTR).
A: KYN28 is a highly reliable, standardized metal-clad, air-insulated design. It is globally recognized for its robust performance in the 12kV to 24kV ranges. Its withdrawable breaker design ensures fast maintenance, while its strong Internal Arc Classification (IAC) containment provides excellent personnel safety during catastrophic short circuits.
A: A reputable manufacturer must hold ISO 9001 (Quality) and ISO 14001 (Environmental) certifications. Product-specific certifications must include IEC 62271-200 for medium voltage assemblies, IEC 61439 for low voltage assemblies, and explicit third-party validation for arc-flash compliance (IAC AFLR ratings).
A: An RMU is a highly compact, totally sealed unit specifically designed for secondary distribution networks. Unlike standard modular MV panels, RMUs integrate switching devices into a single gas-insulated (SF6) or solid-insulated tank, making them immune to harsh environments. Modern specifications are increasingly shifting toward environmentally friendly, SF6-free RMU variants.
A: Smart switchgear integrates IoT sensors to continuously monitor thermal conditions, humidity, and mechanical wear. While the initial CapEx is higher, it is highly worth the investment. It significantly reduces long-term OpEx by enabling predictive maintenance, preventing catastrophic arc faults caused by deteriorating joints, and allowing remote diagnostic capabilities.
