Choosing Low Voltage Switchgear? 7 Key Factors Every Project Engineer Should Know

Low voltage switchgear is a critical part of modern power distribution systems. It is used in industrial plants, commercial buildings, infrastructure projects, data centers, utility facilities and many other applications where electrical power must be distributed safely and reliably.

However, choosing the right low voltage switchgear is not simply a matter of selecting a cabinet with the required current rating. Engineers and electrical contractors also need to consider system configuration, protection requirements, installation conditions, maintenance, future expansion and customization.

So, what should you look at when selecting low voltage electrical switchgear?

1. Determine the Rated Voltage and Current

The first step is to understand the electrical parameters of the project.

The rated voltage, rated current and short-circuit withstand capacity should match the requirements of the power distribution system. Choosing equipment with insufficient electrical capacity can create safety and reliability risks, while significantly oversized equipment may increase project costs unnecessarily.

For industrial and commercial applications, common low voltage switchgear configurations include fixed-type and withdrawable switchgear.

2. Consider Fixed or Withdrawable Switchgear

Different projects require different switchgear structures.

Fixed low voltage switchgear is generally suitable for applications where equipment configuration is relatively stable and simple maintenance requirements are acceptable.

Withdrawable switchgear, on the other hand, allows functional units to be removed or replaced more conveniently. This can be particularly useful in industrial facilities, large commercial buildings and power distribution systems where maintenance efficiency is important.

MNS, GCS and GCK series are commonly used withdrawable low voltage switchgear solutions for different power distribution applications.

3. Evaluate Short-Circuit Protection

Short-circuit protection is one of the most important considerations when selecting switchgear.

The switchgear should be designed according to the expected short-circuit current of the electrical system. Proper protection coordination helps reduce the risk of equipment damage and improves the overall safety of the power distribution system.

Engineers should therefore evaluate:

• Short-time withstand current

• Peak withstand current

• Circuit breaker performance

• Protection coordination

• Busbar capacity

These parameters should be evaluated together rather than individually.

4. Check the Internal Configuration

Low voltage switchgear is more than just an enclosure.

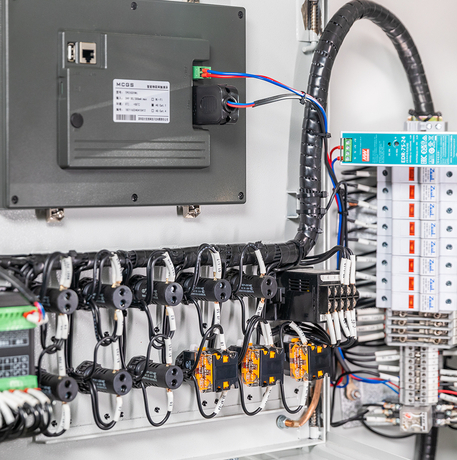

The internal configuration can include circuit breakers, contactors, protection devices, meters, busbars, control components and other electrical equipment.

The arrangement should allow safe operation, convenient maintenance and effective heat dissipation.

For projects with complex electrical requirements, customized internal layouts can also help optimize the overall distribution system.

5. Consider Installation and Operating Conditions

Environmental conditions can significantly affect switchgear performance.

Before selecting equipment, project engineers should consider:

• Ambient temperature

• Humidity

• Dust

• Altitude

• Indoor or outdoor installation

• Ventilation conditions

• Corrosive environments

For special environments, the enclosure structure, protection level and component selection may need to be adjusted accordingly.

6. Think About Future Expansion

A power distribution system may need to expand as a factory, commercial building or infrastructure project grows.

Therefore, it is useful to reserve sufficient space and capacity for future circuits where possible.

A properly planned low voltage distribution system can reduce the difficulty and cost of future upgrades.

This is especially important for industrial plants, data centers and large commercial facilities with continuously changing power requirements.

7. Choose a Manufacturer With Engineering Capability

The quality of the switchgear is only one part of the purchasing decision.

For B2B projects, the manufacturer's engineering capability, customization experience, quality management and after-sales support are also important.

A professional low voltage switchgear manufacturer should be able to provide technical communication, electrical configuration, manufacturing, testing and project support according to the customer's requirements.

Which Low Voltage Switchgear Is Right for Your Project?

There is no single switchgear solution suitable for every application.

MNS and GCS withdrawable switchgear can be considered for projects requiring flexible functional-unit configuration and convenient maintenance. GGD fixed switchgear can be suitable for conventional low voltage power distribution applications.

The right solution depends on the project's electrical parameters, installation environment, operating requirements and future expansion plans.

Conclusion

Selecting low voltage switchgear should be treated as an engineering decision rather than simply a product purchase.

By evaluating rated current, short-circuit protection, switchgear structure, internal configuration, installation conditions, future expansion and manufacturer capabilities, project owners and electrical contractors can build a safer and more reliable power distribution system.

For customized low voltage switchgear requirements, working directly with an experienced manufacturer can also help simplify technical communication and project implementation.

Changzhou Tuoxin Electric provides MNS, GCS, GCK and GGD low voltage switchgear, together with customized electrical distribution and control solutions for industrial, commercial and utility applications.
