If you manage a factory, commercial building, data center, or any facility that relies on a steady supply of electricity, you've probably heard the term switchgear. But what exactly is it, and why do engineers treat it as one of the most important components in a power distribution system?
In this guide, we'll break down switchgear in plain language, explain how it works, and show you why investing in quality switchgear pays for itself many times over.

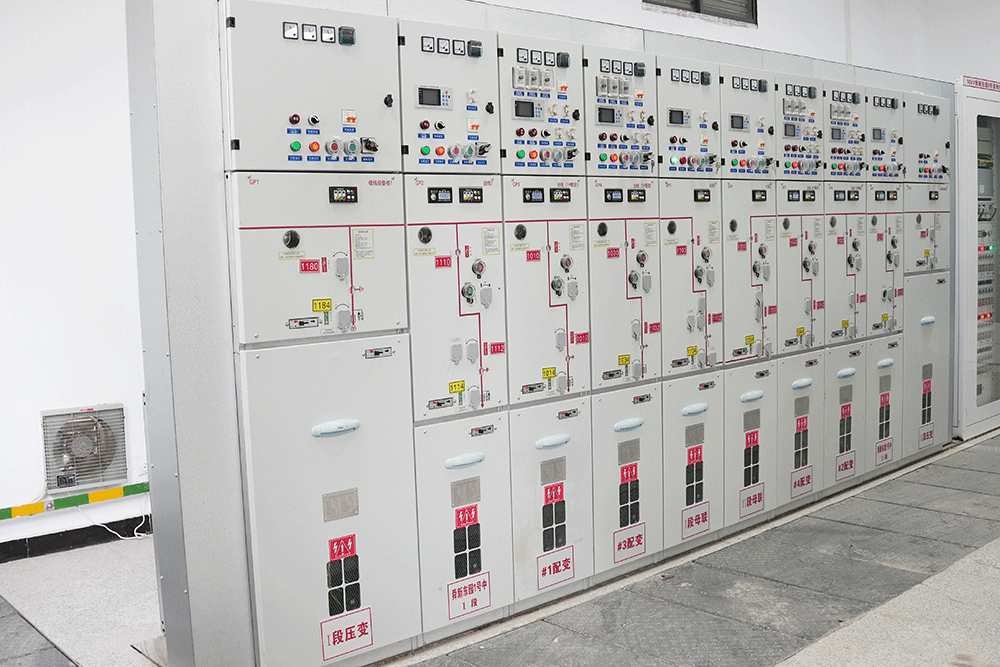

Switchgear is a combination of electrical disconnect switches, fuses, circuit breakers, and control devices used to control, protect, and isolate electrical equipment in a power distribution network.
Think of it as the traffic control system for electricity. Just as traffic lights and signals direct vehicles safely through an intersection, switchgear directs electrical power to the right places, shuts off faulty circuits, and protects equipment and personnel from electrical hazards.
At its core, switchgear performs three essential functions:
When a fault occurs — such as a short circuit, overload, or equipment failure — switchgear automatically detects the problem and disconnects the affected section of the electrical network. This prevents damage from spreading and keeps the rest of the system running.
Switchgear allows operators to manually or automatically energize or de-energize circuits for maintenance, testing, or operational needs. This level of control is critical for scheduled downtime and emergency response.
For safe maintenance work, switchgear can physically isolate a section of the power system. This ensures that workers can safely service equipment without risk of electric shock.
Switchgear is classified based on the voltage level it handles:
Type | Voltage Range | Common Applications |
Low Voltage (LV) | Up to 1,000 V AC | Commercial buildings, factories, data centers |
Medium Voltage (MV) | 1 kV – 36 kV | Industrial plants, substations, power generation |
High Voltage (HV) | Above 36 kV | Transmission networks, large power stations |
Within each category, there are different designs:
Fixed Switchgear — Components are bolted in place; cost-effective for simple installations
Withdrawable (Drawout) Switchgear — Components slide in and out on rails; ideal for facilities requiring frequent maintenance
Ring Main Unit (RMU) — Compact, sealed units for secondary distribution networks
Each type has its own advantages depending on your facility's size, complexity, and maintenance requirements.
It's tempting to save money by choosing the lowest-cost option. But with switchgear, a bad decision can be incredibly expensive:
Unplanned downtime — A single fault-induced outage can cost a manufacturing plant $$50,000 to$$250,000+ per hour
Equipment damage — Poorly designed switchgear may fail to clear faults properly, causing cascading damage to transformers, motors, and other expensive equipment
Safety risks — Substandard switchgear increases the risk of arc flash incidents, fire, and serious injury to personnel
Regulatory penalties — Non-compliant installations can lead to fines, insurance complications, and forced shutdowns
Quality switchgear from a certified manufacturer isn't an expense — it's insurance for your entire electrical infrastructure.
When evaluating switchgear suppliers, consider these factors:
Certifications — ISO 9001 quality management and product-specific certifications (such as CCC, IEC, or Type Test reports)
Engineering capability — A team that can design custom solutions, not just off-the-shelf products
Manufacturing standards — Modern production equipment, clean assembly environments, and rigorous testing
After-sales support — Technical assistance, spare parts availability, and responsive service
Track record — Proven experience in projects similar to yours
Switchgear may not be the most glamorous part of your facility, but it's arguably the most important for safety, reliability, and operational efficiency. Whether you're building a new facility, upgrading existing infrastructure, or planning a major expansion, investing time in selecting the right switchgear — and the right manufacturer — will pay dividends for years to come.
